(1) ANYANG VORTAC (SEL) - OSPOT

Daegu ACC

FREQ : (at or below FL295)

128.70(118.925) MHz, 270.50(263.60) MHz

FREQ : (above FL 295)

132.80(120.525) MHz, 290.60(335.45) MHz

Airspace Classification

Class A : Above FL 200 - FL 600

Class D : MEA - FL 200

Class G : Above FL 600 - UNL

(2) OSPOT - APELA

Daegu ACC

FREQ :

125.375(125.775, 124.575) MHz, 234.15(317.35, 335.50) MHz

Airspace Classification

Class A : Above FL 200 - FL 600

Class D : MEA - FL 200

Class G : Above FL 600 - UNL

(1) TENAS - DABIK

Daegu ACC

FREQ :

122.250(125.925) MHz, 263.350(263.85) MHz

Airspace Classification refer to ENR 3.1-1

(2) DABIK - BUSAN VORTAC(PSN)

FREQ :

120.575(119.375, 119.325, 134.375) MHz, 254.70(335.75) MHz

Airspace Classification refer to ENR 3.1-1

(3) BUSAN VORTAC(PSN) - TOPAX

Daegu ACC

FREQ :

125.375(125.775, 124.575) MHz, 234.15(317.35, 335.50) MHz

Airspace Classification refer to ENR 3.1-1

(4) TOPAX - MAKET

Daegu ACC

FREQ :

128.175(128.325) MHz, 335.50(275.20) MHz

Airspace Classification refer to ENR 3.1-1

(5) MAKET - RUGMA(FIR BDRY)

Incheon ACC

FREQ :

124.525(132.425) MHz, 255.40(233.50, 348.10) MHz

Airspace Classification refer to ENR 3.1-1

※ The cruising levels from CJU to RUGMA are even levels due to operational reasons.

※ The cruising levels from RUGMA to CJU are odd levels due to operational reasons.

TENAS-PSN CDR1 Operational hour(UTC) - Weekdays : 1100-2200 - SAT: 2200 on the preceding until 2400 on the Saturday - SUN : 0000-2200 - Holiday : 1100 on the preceding until 2200 on the holiday. Rest of A586-PERM. See ENR 1.1-1.2.

* A586(PSN-CJU) is only used for Non-RNAV aircraft. Any aircraft approved for RNAV operations should use Y571 or Y572.

** Any aircraft planning to operate above 10 000 ft between PSN and CJU must coordinate with Daegu ACC before flight planning.

(1) ONIKU - LAMEN

Incheon ACC

FREQ : (At or above FL 335)

133.425(132.425) MHz, 234.35(234.65) MHz

(Below FL 335)

125.725(132.825, 128.375) MHz, 232.95(233.15) MHz

Airspace Classification refer to ENR 3.1-1

※ Eastbound from SADLI to ONIKU is only for Non-approval of RNAV 2. Any aircraft approved for RNAV 2 operation should use Y590.

1. Delegation

The responsibility of Air Traffic Services in the scope below within Incheon FIR is delegated to Shanghai ACC.

- Horizontal scope : 320229N 1240000E - 321540N 1250000E - 312356N 1250000E - 311043N 1240000E

- Vertical scope : FL 240 through FL 410 inclusive

2. Flight Level Allocation Scheme (FLAS)

(1) The west of SADLI

- Eastbound : FL 250, FL 270, FL 290, FL 310, FL 330, FL 350, FL 370, FL 390, FL 410

- Westbound : FL 240, FL 260, FL 280, FL 300, FL 320, FL 340, FL 360, FL 380, FL 400

(2) The east of SADLI

- Eastbound(From Shanghai FIR To Fukuoka FIR) : FL 250, FL 290, FL 310, FL 390

- Westbound(From Fukuoka FIR To Shanghai FIR) : FL 240, FL 280, FL 300, FL 400

(1) JEJU VORTAC(CJU) - SAMDO(FIR BDRY)

Incheon ACC

FREQ :

124.525(132.425) MHz, 255.40(233.50, 348.10) MHz

Airspace Classification refer to ENR 3.1-1

(1) KANSU - IGRAS

Daegu ACC

FREQ :

122.250(125.925) MHz, 263.350(263.85) MHz

Airspace Classification refer to ENR 3.1-1

(1) GANGWON VORTAC(KAE) - KANSU(FIR BDRY)

(1) GANGWON VORTAC(KAE) - UGOVI

Daegu ACC

FREQ: (at or below FL295)

134.175(123.65) MHz, 272.40(233.60) MHz

FREQ : (above FL 295)

122.250(125.925) MHz, 263.350(263.85) MHz

Airspace Classification refer to ENR 3.1-1

(2) UGOVI - KANSU(FIR BDRY)

Daegu ACC

FREQ :

122.250(125.925) MHz, 263.350(263.85) MHz

Airspace Classification refer to ENR 3.1-1

(1) ANYANG VORTAC (SEL) - SONGTAN VORTAC (SOT)

Daegu ACC

FREQ : (at or below FL 295)

128.70(118.925) MHz, 270.50(263.60) MHz

FREQ : (above FL 295)

132.80(120.525) MHz, 290.60(335.45) MHz

Airspace Classification refer to ENR 3.1-1

(2) SONGTAN VORTAC (SOT) - LINTA

Incheon ACC

FREQ : (at or below FL 255)

126.175(134.375) MHz, 317.85(335.55) MHz

FREQ : (above FL 255)

132.15(123.55) MHz, 263.15(272.60) MHz

Airspace Classification refer to ENR 3.1-1

* Note

B576 is only used for Non-RNAV aircraft.

Any aircraft approved for RNAV operations should use Y711 or Y722.

(3) LINTA - IPDAS

Incheon ACC

FREQ : (at or below FL 255)

120.725(128.30) MHz, 263.90(272.75) MHz

FREQ : (above FL 255)

123.725(124.50) MHz, 239.25(275.40) MHz

Airspace Classification refer to ENR 3.1-1

(4) IPDAS - SAMLO

Incheon ACC

FREQ :

124.525(132.425) MHz, 255.40(233.50, 348.10) MHz

Airspace Classification refer to ENR 3.1-1

** Note

* Note

Any aircraft planning to operate above FL 140 between SOT and CJU must coordinate with Incheon ACC before flight planning.

** Note

Any southbound aircraft planning to operate below FL 320 between CJU and ATOTI must use Y711 until BONSO, then use Z86 to ATOTI.

(5) SAMLO - ATOTI

Incheon ACC

FREQ : (At or above FL 335)

133.425(132.425) MHz, 234.35(234.65) MHz

FREQ : (below FL 335)

125.725(132.825, 128.375) MHz, 232.95(233.15) MHz

Airspace Classification refer to ENR 3.1-1

NAVAID(DME) GAP : Between 44 NM from KWA and 55 NM from SOT, below 10 000 ft AMSL, request to controller is required to get distance information.

(1) BUSAN VORTAC (PSN) - INVOK

Daegu ACC

FREQ :

125.375(125.775, 124.575) MHz, 234.15(317.35, 335.50) MHz

Airspace Classification refer to ENR 3.1-1

(1) ANYANG VORTAC (SEL) - GUKDO

Daegu ACC

FREQ: (at or below FL 295)

128.70(118.925) MHz, 270.50(263.60) MHz

FREQ : (above FL 295)

132.80(120.525) MHz, 290.60(335.45) MHz

Only flying westbound from KPO to SEL on G585 is authorized except ACFT departing from RKTY or RKTI.

Aircraft flying eastbound from SEL to KPO at or above 11 000 ft on G585 shall get PPR 24 hours before from Daegu ACC.

No PPR is needed at or below 10 000 ft.

Airspace Classification refer to ENR 3.1-1

(2) GUKDO - SAPRA(FIR BDRY)

Daegu ACC

FREQ :

125.375(125.775, 124.575) MHz, 234.15(317.35, 335.50) MHz

Only flying westbound from KPO to SEL on G585 is authorized except ACFT departing from RKTY or RKTI.

Aircraft flying eastbound from SEL to KPO at or above 11 000 ft on G585 shall get PPR 24 hours before from Incheon/Daegu ACC.

No PPR is needed at or below 10 000 ft.

Airspace Classification refer to ENR 3.1-1

(1) AGAVO - KARBU

Daegu ACC

FREQ : (at or below FL 295)

128.70(118.925) MHz, 270.50(263.60) MHz

FREQ : (above FL 295)

132.80(120.525) MHz, 290.60(335.45) MHz

Westbound(SEL-AGAVO)

FL 400, FL 380, FL 360,

FL 340, FL 320, FL 300,

FL 280, FL 260, FL 240,

FL 220, FL 200.

* Note

G597 is only for Non-RNAV aircraft.

Any aircraft approved for RNAV operations should use Y697.

Only flying westbound from SEL to AGAVO on G597 is authorized.

(Unless otherwise assigned by ATC, flying eastbound in this airway shall not be used.)

Aircraft flying eastbound from AGAVO to SEL on G597 shall get PPR 24 hours before from Incheon ACC.

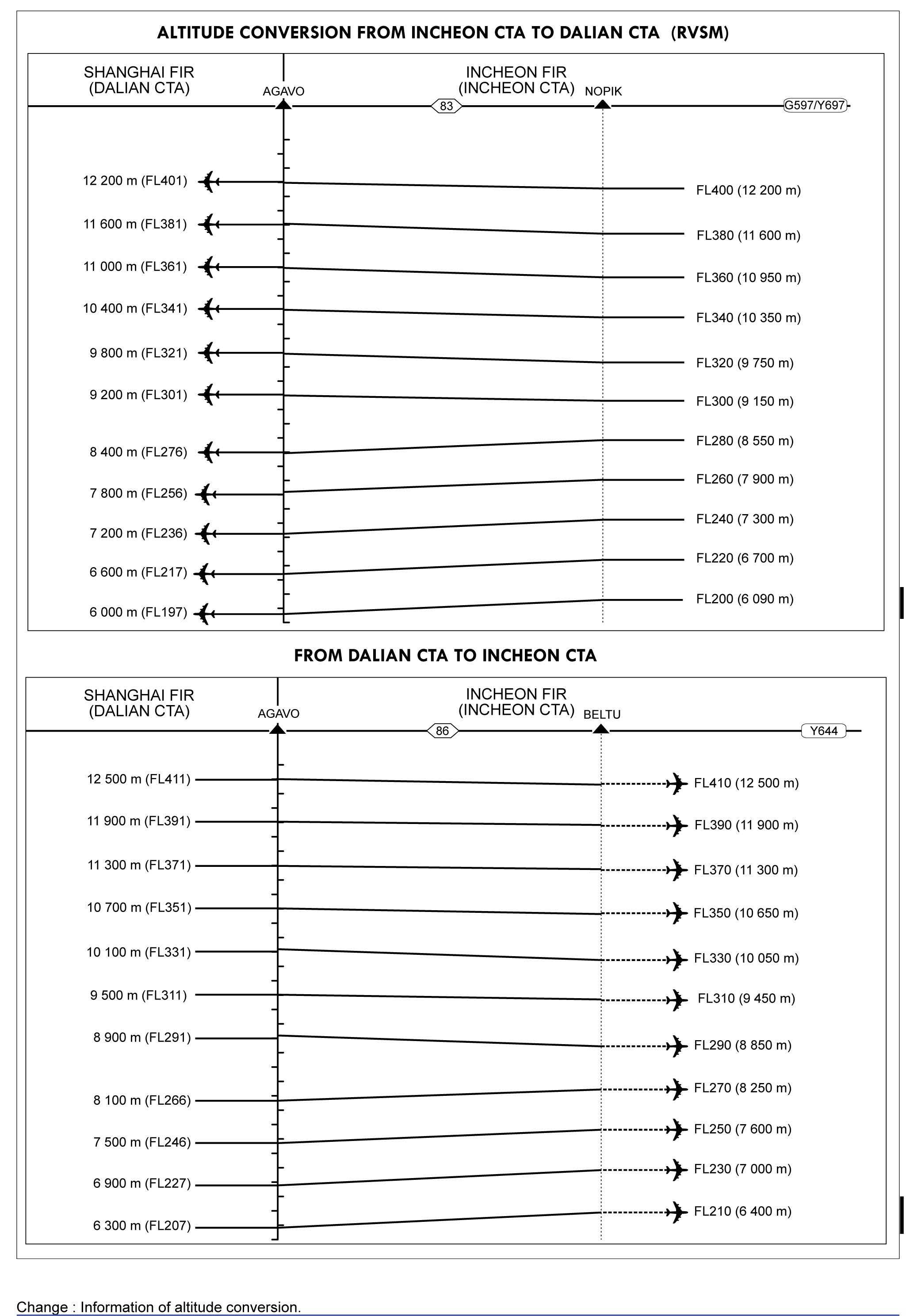

REF. ENR 3.1-9 for the detailed altitude conversion procedures.

(2) KARBU - LANAT(FIR BDRY)

Daegu ACC

FREQ : (at or below FL 295)

134.175(123.65) MHz, 272.40(233.60) MHz

FREQ : (above FL 295)

122.250(125.925) MHz, 263.350(263.85) MHz

Only flying westbound from LANAT to KAE on G597 shall get 24 HR PPR from Daegu ACC.

Airspace Classification refer to ENR 3.1-1

(1) PILIT - LOSTO

(1) PILIT - OSVOM

Daegu ACC

FREQ : (at or below FL 295)

134.175(123.65) MHz, 272.40(233.60) MHz

FREQ : (above FL 295)

122.250(125.925) MHz, 263.350(263.85) MHz

1. 11 000 ft to FL 240, at or above FL 280 will be blocked.

2. At or above 11 000 ft, required 15 days PPR from Air Traffic Management Office.

3. Airspace Classification refer to ENR 3.1-1

(2) LOSTO - BUSAN VORTAC(PSN)

(2) OSVOM - BUSAN VORTAC(PSN)

Daegu ACC

FREQ :

120.575(119.375, 119.325, 134.375) MHz, 254.70(335.75) MHz

1. 11 000 ft to FL 240, at or above FL 280 will be blocked.

2. At or above 11 000 ft, required 15 days PPR from Air Traffic Management Office.

3. Airspace Classification refer to ENR 3.1-1

(1) DALSU - TEDAN

Incheon ACC

FREQ : (at or below FL 255)

120.725(128.30) MHz, 263.90(272.75) MHz

FREQ : (above FL 255)

123.725(124.50) MHz, 239.25(275.40) MHz

Airspace Classification refer to ENR 3.1-1

(2) TEDAN - BUSAN VORTAC(PSN)

Daegu ACC

FREQ :

128.175(128.325) MHz, 335.50(275.20) MHz

Airspace Classification refer to ENR 3.1-1

(1) GWANGJU VOR(KWA) - IGDOK

Incheon ACC

FREQ : (at or below FL 255)

120.725(128.30) MHz, 263.90(272.75) MHz

FREQ : (above FL 255)

123.725(124.50) MHz, 239.25(275.40) MHz

Airspace Classification refer to ENR 3.1-1

(2) IGDOK - DALSEONG VORTAC(TGU)

Daegu ACC

FREQ :

128.175(128.325) MHz, 335.50(275.20) MHz

Airspace Classification refer to ENR 3.1-1

(1) GUNSAN VORTAC (KUZ) - OPEDA

Incheon ACC

FREQ: (at or below FL 255)

126.175(134.375) MHz, 317.85(335.55) MHz

FREQ : (above FL 255)

132.15(123.55) MHz, 263.15(272.60) MHz

Airspace Classification refer to ENR 3.1-1

(2) OPEDA - POHANG VORTAC (KPO)

Daegu ACC

FREQ :

125.375(125.775, 124.575) MHz, 234.15(317.35, 335.50) MHz

Airspace Classification refer to ENR 3.1-1

TGU is used between TGU and KPO.

(1) GWANGJU TACAN (KWJ) - RUNIT

Incheon ACC

FREQ : (at or below FL 255)

120.725(128.30) MHz, 263.90(272.75) MHz

FREQ : (above FL 255)

123.725(124.50) MHz, 239.25(275.40) MHz

Between RIMPO and RUNIT 11 000 ft AMSL to FL 190 VMC-IMC use for training purpose.

Airspace Classification refer to ENR 3.1-1

(2) RUNIT - BUSAN VORTAC (PSN)

Daegu ACC

FREQ :

128.175(128.325) MHz, 335.50(275.20) MHz

Between RIMPO and RUNIT 11 000 ft AMSL to FL 190 VMC-IMC use for training purpose.

Airspace Classification refer to ENR 3.1-1

(1) SONGTAN VORTAC (SOT) - GOGET

Daegu ACC

FREQ : (at or below FL 295)

128.70(118.925) MHz, 270.50(263.60) MHz

FREQ : (above FL 295)

132.80(120.525) MHz, 290.60(335.45) MHz

Airspace Classification refer to ENR 3.1-1

(1) SONGTAN VORTAC (SOT) - EGOBA

Daegu ACC

FREQ : (at or below FL 295)

128.70(118.925) MHz, 270.50(263.60) MHz

FREQ : (above FL 295)

132.80(120.525) MHz 290.60(335.45) MHz

Airspace Classification refer to ENR 3.1-1

(1) DALSEONG VORTAC (TGU) - TOPAX

Daegu ACC

FREQ :

125.375(125.775, 124.575) MHz, 234.15(317.35, 335.50) MHz

Airspace Classification refer to ENR 3.1-1
